Modifications/repairs - page 6


Back to page 5.

Floor pan modified to make room for exhausts to be tucked up above the level of the bottom of the chassis rails.

Click for full size Click for full size Click for full size

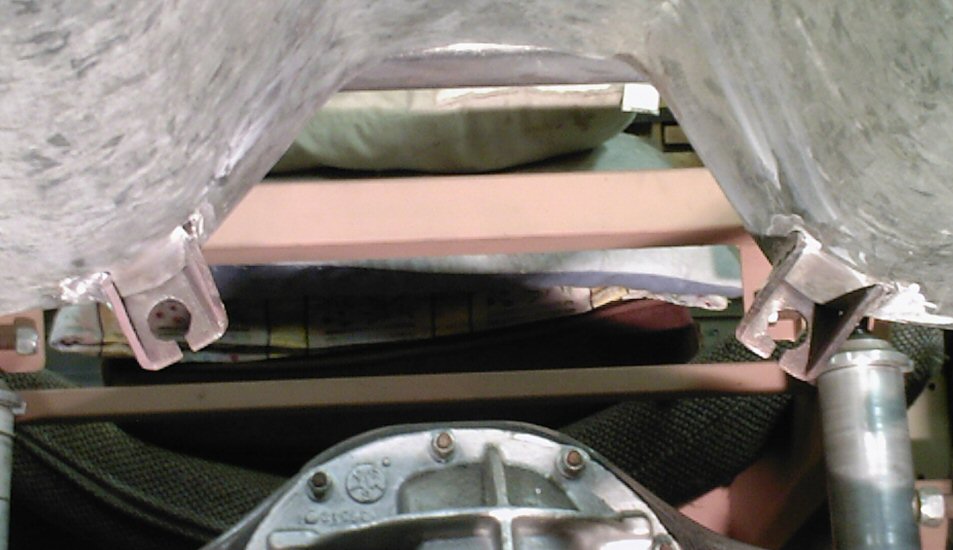

New brackets were needed for where the handbrake cable outer sheaths met the floor pan.

Click for full size Click for full size Click for full size Click for full size Click for full size

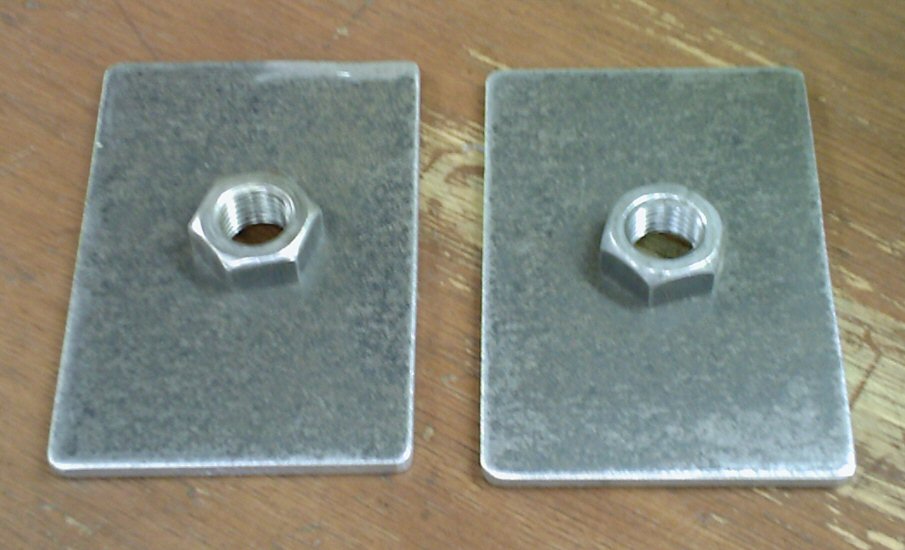

New seat belt fixing were needed on the transmission tunnel, as the original Cortina ones were on a bracket on the seat runners..

Click for full size Click for full size Click for full size

The main floor pan was stripped, treated, primed and painted matt black.

Click for full size Click for full size

The engine and car meet for the first time.

Click for full size

The engine is to be mounted by an engine plate.

Click for full size Click for full size Click for full size Click for full size Click for full size Click for full size

The engine is installed for the first time.

Click for full size Click for full size Click for full size Click for full size

The engine plate gets mounting bushes.

Click for full size Click for full size Click for full size Click for full size

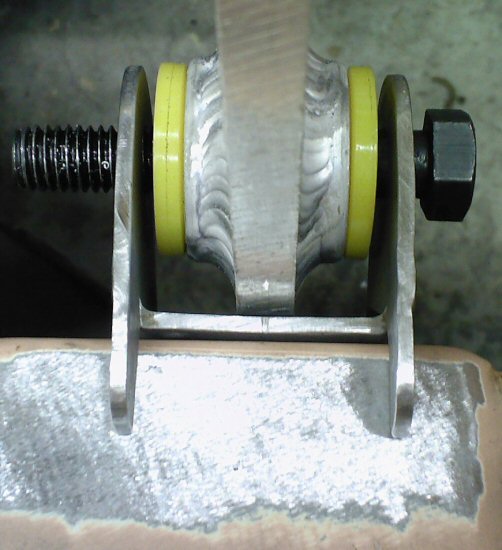

The engine plate to chassis brackets get added.

Click for full size Click for full size Click for full size Click for full size

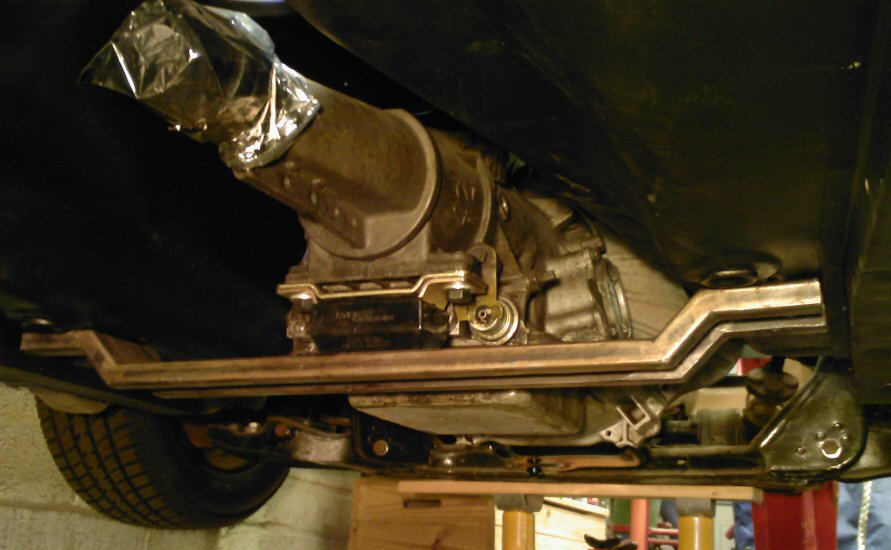

A custom gearbox crossmember is required.

Click for full size Click for full size Click for full size

In goes a 60 litre Jaz fuel cell.

Click for full size Click for full size Click for full size

The front gets modified to take the new Race Pro radiator.

Click for full size Click for full size Click for full size Click for full size Click for full size Click for full size Click for full size

Forward to page 7.
